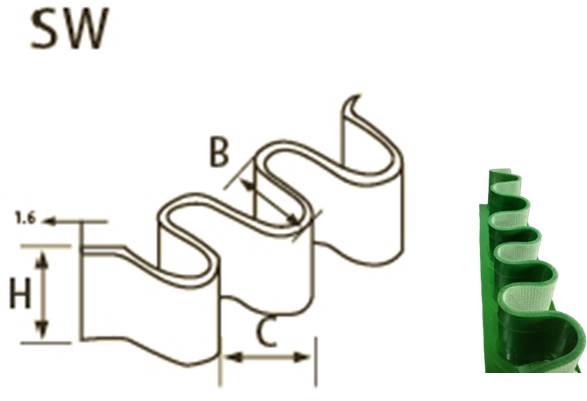

| SYMBOL | BXH | COLOR | THICKNESS | PITCH | ψMIN. | ||
| (mm) | (mm) | (mm) | 最小輪徑(mm) | ||||
| 型號 | 尺寸 | 顏色 | 厚度 | 波浪間距 | Conveyor side | Running side | |
| C | 輸送面 | 運轉面 | |||||
| SW30 | 50X30 | White/Green | 2.5 | 40 | 100 | — | |
| SW40 | 50X40 | White/Green | 2.5 | 40 | 110 | — | |
| SW50 | 50X50 | White/Green | 2.5 | 40 | 120 | — | |
| SW60 | 50X50 | White/Green | 2.5 | 50 | 130 | — | |
| SW70 | 50X70 | White/Green | 2.5 | 60 | 140 | — | |
